Polycarbonate Flat Punched Carrier Tape
Sinho’s Flat Punched Carrier Tape is engineered for Tape and Reel leaders and trailers for partial component reels, and it is suitable to be used with most SMT pick and place feeders. Sinho’s Flat Punched Carrier Tape is available to be manufactured with a board range of thickness and sizes tape in clear & black polystyrene material, black polycarbonate material, clear polyethylene terephthalate material, and white paper materials. This punched tape can be spliced to an existing SMD reels to extend the length and avoid waste.
Polycarbonate (PC) Flat Punched Carrier Tape is conductive black materials protecting components from electrostatic discharge (ESD). This material is available in a board range of thickness from 0.30mm to 0.60mm for a variety width tape from 4mm up to 88mm.
Details
| Made of polycarbonate conductive black material protecting from ESD | Available in a board range of thickness from 0.30 to 0.60mm | Available sizes from 4mm up to 88mm | ||
| Suitable on all major SMT pick and place feeders | Available in 400m, 500m, 600m lengths | Custom length is available |
Available Widths

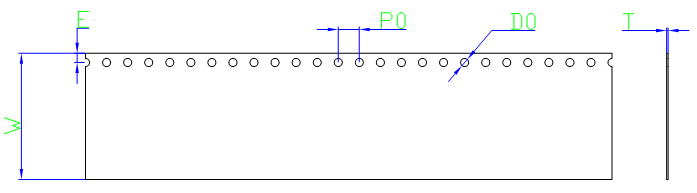

Wide 8-24mm just with sprocket holes
|
SO |
E |
PO |
DO |
T |
|
|
/ |
1.75 ±0.10 |
4.00 ±0.10 |
1.50 +0.10/-0.00 |
0.30 ±0.05 |
|
|
12.00 ±0.30 |
/ |
1.75 ±0.10 |
4.00 ±0.10 |
1.50 +0.10/-0.00 |
0.30 ±0.05 |
|
16.00 ±0.30 |
/ |
1.75 ±0.10 |
4.00 ±0.10 |
1.50 +0.10/-0.00 |
0.30 ±0.05 |
|
24.00 ±0.30 |
/ |
1.75 ±0.10 |
4.00 ±0.10 |
1.50 +0.10/-0.00 |
0.30 ±0.05 |
Typical Properties
| Brands |
SINHO |
|
| Color |
Black |
|
| Material |
Polycarbonate (PC) Conductive |
|
| Overall Width |
8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm, |
|
| Thickness |
0.3mm, 0.4mm, 0.5mm, 0.6mm or other required thickness |
|
| Length |
400M, 500M, 600M or other custom lengths |
Material Properties
|
Physical Properties |
Test method |
Unit |
Value |
|
Specific Gravity |
ASTM D-792 |
g/cm3 |
1.25 |
|
Mould Shrinkage |
ASTM D955 |
% |
0.4-0.7 |
|
Mechanical Properties |
Test method |
Unit |
Value |
|
Tensile Strength |
ASTM D638 |
Mpa |
65 |
|
Flexural Strength |
ASTM D790 |
Mpa |
105 |
|
Flexural Modulus |
ASTM D790 |
Mpa |
3000 |
|
Notched Izod Impact Strength (3.2mm) |
ASTM D256 |
J/m |
300 |
|
Thermal Properties |
Test method |
Unit |
Value |
|
Melt Flow Index |
ASTM D1238 |
g/10min |
4-7 |
|
Electrical Properties |
Test method |
Unit |
Value |
|
Surface Resistance |
ASTM D-257 |
Ohm/sq |
104~5 |
|
Flammability Properties |
Test method |
Unit |
Value |
|
Flame Rating @ 3.2mm |
Internal |
NA |
NA |
|
Processing Conditions |
Test method |
Unit |
Value |
|
Barrel Temperature |
|
°C |
280-300 |
|
Mould Temperature |
|
°C |
90-110 |
|
Drying Temperature |
|
°C |
120-130 |
|
Drying Time |
|
Hour |
3-4 |
|
Injection Pressure |
MED-HIGH |
||
|
Hold Pressure |
MED-HIGH |
||
|
Screw Speed |
MODERATE |
||
|
Back Pressure |
LOW |
||
Shelf Life and Storage
Product should be used within 1 year from the date of manufacture. Store in its original packaging in a climate-controlled environment where temperature ranges from 0~40℃, relative humidity <65%RHF. This product is protected from direct sunlight
Camber
Meets current EIA-481 standard for camber that is not greater than 1mm in 250 millimeters length.
