Product Description FOR PN ANT-315-HETH
HE Series antennas are designed for direct PCB mounting. Thanks to the HE’s compact size, they are ideal for internal concealment inside a product’s housing. The HE is also very low in cost, making it well suited to high-volume applications. HE Series antennas have a very narrow bandwidth; thus, care in placement and layout is required. In addition, they are not as efficient as whip-style antennas, so they are generally better suited for use on the transmitter end where attenuation is often required anyway for regulatory compliance. Use on both transmitter and receiver ends is recommended only
in instances where a short range (less than 30% of whip style) is acceptable.
Features
· Very low cost
· Compact for physical concealment
· Precision-wound coil
· Rugged phosphor-bronze construction
· Mounts directly to the PCB

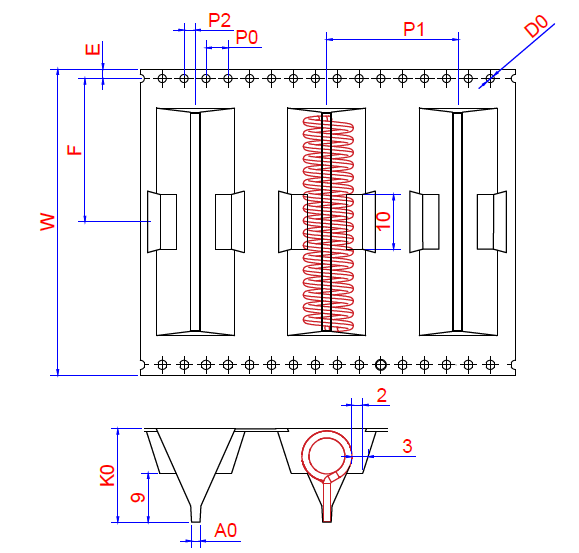

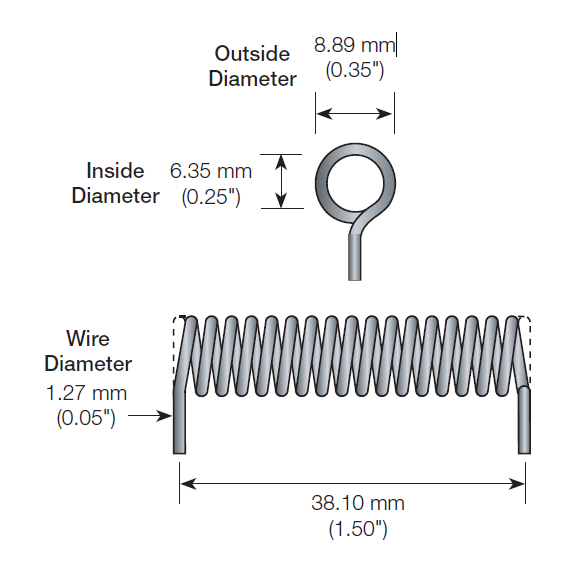

Part dimension:
Customer required placing orientation: we want the pins facing down in the pocket
The design we submitted to our customer within 2 hours, and our engineering team considers that this part cannot accommodate the Kapton tape and will require a gripper to pick it up. Our engineering team has ensured that there is sufficient space in the pocket design for this purpose.
Remark: the dimensions of 10mm, 2mm, and 3mm below are all reserved space for the gripper.
