Kraft Paper Tape for Radial Leaded Components SHPT63P

Engineered for Radial Leaded Components
Product Code: SHPT63P Kraft Paper Tape
Applications: capacitors, LEDs, resistors, thermistors, TO92 transistors, TO220s.
All components are taped in accordance with current EIA 468 standards

Product Detail

Product Tags

Sinho’s SHPT63P Kraft Paper Tape is designed for Radial Leaded Components such as LEDs, capacitors, resistors, thermistors, TO92, transistors, TO220s. All components are taped in accordance with current EIA 468 standards.

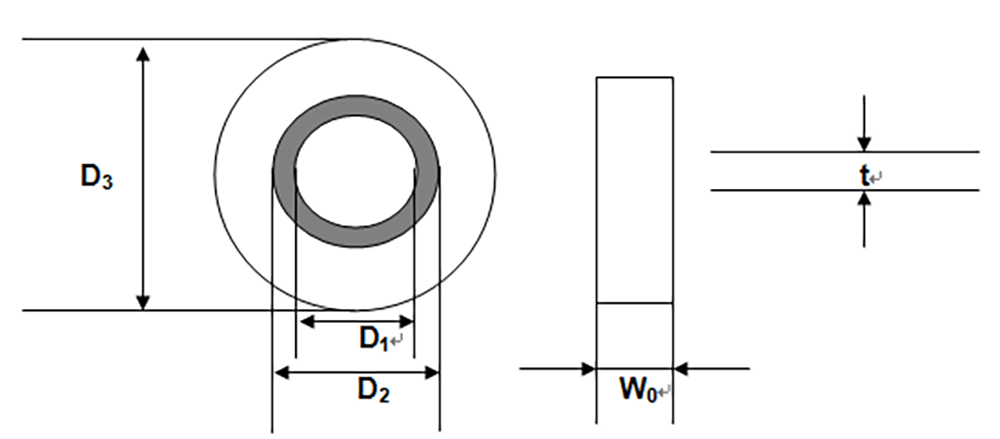

kraft-paper-tape-for-radial-leaded-components-construction

Available Sizes

Width (Wo)	18mm±0.2mm
Length (L)	500m±20m
Thickness (mm)	0.45mm±0.05mm
Inter diameter (D1)	76.5mm±0.5mm
Outer diameter (D2)	84mm±0.5mm
Outer diameter (D3)	545mm±5mm

Physical Properties

Items	Typical Value
Tensile Strength (KG)	≥15kgf
Folding Strength	≥200 times

Recommended Storage Conditions

Store in its original packaging within a temperature ranges from 21℃ to 25℃, and relative humidity 65%±5% RH. This product is protected from direct sunlight and moisture.
